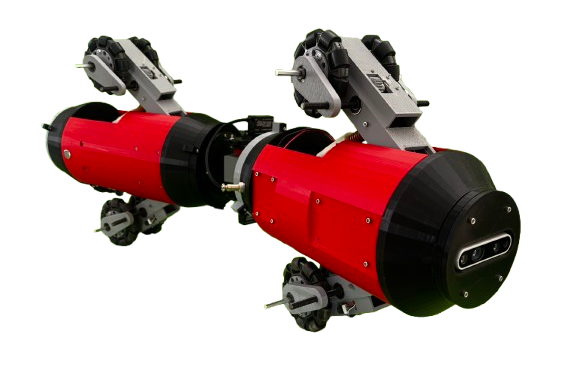

An Articulated Robot for Complex and Confined Environments

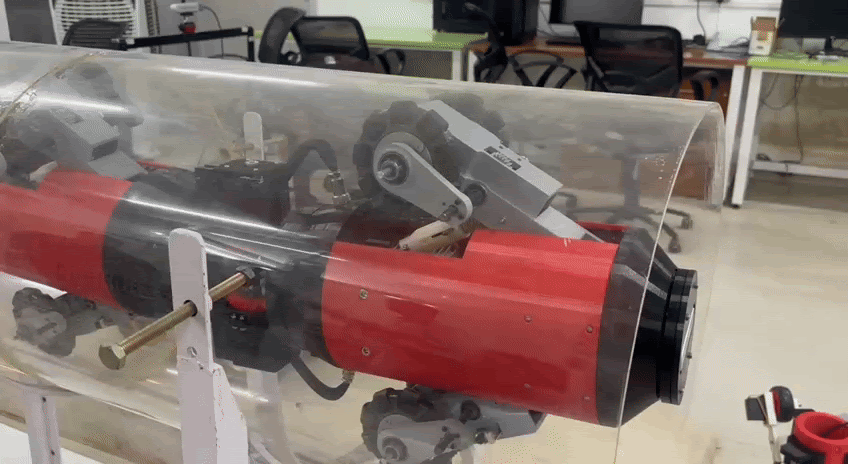

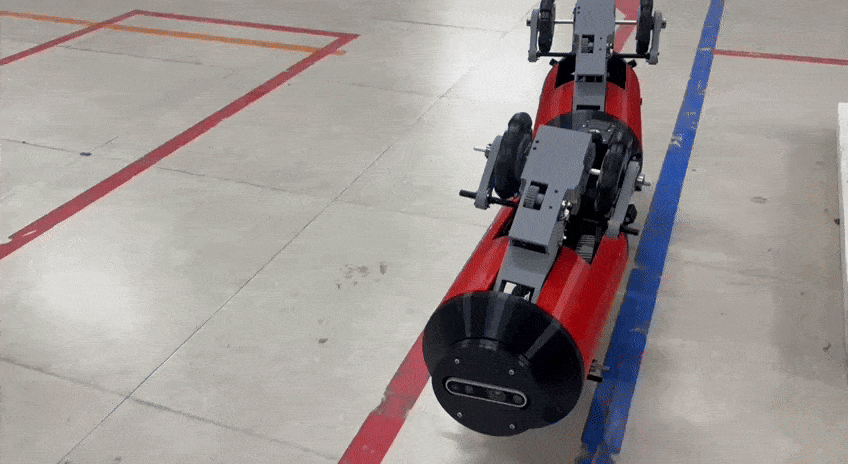

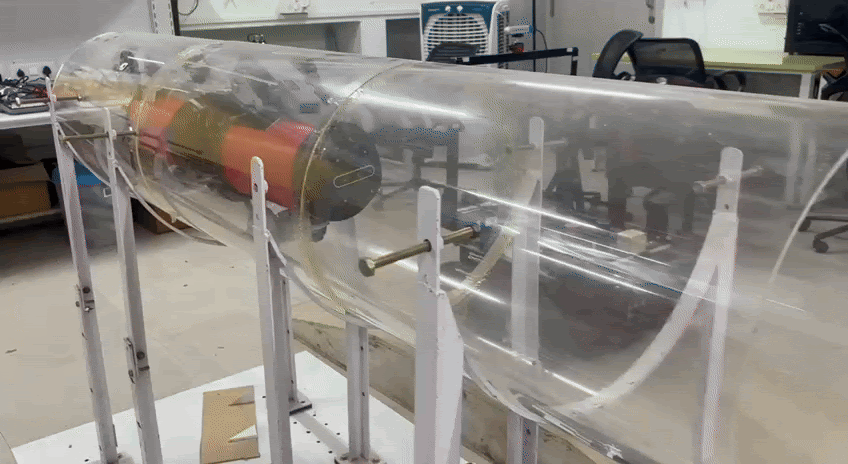

This inspection robot is designed to navigate both structured and unstructured environments with ease. Equipped with an articulated active joint, it offers precise steering control. Developed specifically for dual-mode operation, the robot seamlessly transitions between in-pipe and ground motion. To enhance stability on the ground, the robot features a configurable wheel distance mechanism that expands its support polygon. For in-pipe navigation, it employs a wall-press mechanism optimized to adapt to variations in pipe diameter. Additionally, its 2-DOF articulated joint enables both pitch and roll adjustments, allowing it to maneuver around obstacles within the pipe efficiently.
